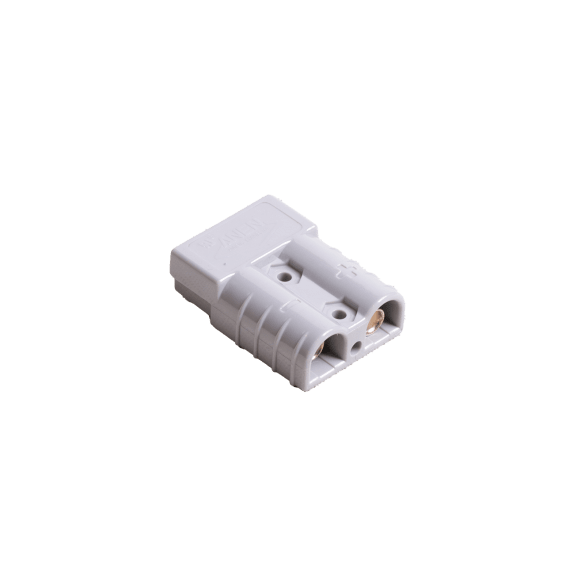

Anderson Plug Grey 011050a 50a - 22655
Product Description
Anderson Plug Grey 011050a 50a - 22655
The Anderson plug or Brad Harrison plug is a quick connector that is used in DC Power applications.
The 50A Anderson Plug can accommodate cables up to 16mm. The Anderson plug contacts have a superior surface area and ensure a good connection. The Anderson plug or Brad Harrison plug work with any 12V battery. They are a perfect port to connect your portable camping fridge or solar panel to your battery. It’s a male and female counterpart so you can connect your solar panels, camp fridges, and more to your solar batteries.
Product Information
- Colour: Grey.
- Pins: 2.
- Rated current (Amp): 50A.
- Rated voltage (Volts): 600V.
- Insulation Resistance: 5000MΩ.
- Average Connection/disconnect (N): 95±5N.
- Without load (Contact/Disconnect Cycles): To 10000.
- With Load (Hot Plug 250 Cycles & 120V): 40A.
- Flammability: Flammability: UL94 V-0.
- Certification: ISO9001/TS16949.
- Contact material: Silver Plated Copper.
- The material of the Terminal: Red copper.
